High Speed Chemical Centrifuge Two stage Pusher Centrifuge for Nitrocotton Dehydration

Name: High Speed Chemical Centrifuge Two stage Pusher Centrifuge for Nitrocotton Dehydration
Brand: Peony
Price: 1 USD

Buy cheap High Speed Chemical Centrifuge Two stage Pusher Centrifuge for Nitrocotton Dehydration product

Brand Name : Peony

Model Number : PP

Certification : ISO,CE

Place of Origin : China

MOQ : 1

Payment Terms : T/T, L/C

Supply Ability : 20 sets/month

Delivery Time : 90 days

Packaging Details : Standard export packings

Application : Sea salt, mineral salt, copper sulphate dehydration

Sieve slot : Customerized

MOC : SS304,SS316,DUPLEX SS

Control : PLC

Design : SUZLER

Operation : Continuous

Temperature allowed : Below 105degree

Discharge : Pushing type

Electrical elements : Famous brand

Humidity in the cake : Humidity in the cake

Voltage : Customized

Power(w) : 1.1-11kw

Warranty : 1 Year

Dimension(l*w*h) : Model Choosing

After-sales service provided : Engineers available to service machinery overseas,Online support,Video technical support

Type : Separating Plant

Product type : Chemical & Pharmaceutical

Material : Stainless Steel

Capacity : Meet Requirement

Machine type : Centrifugal Solid- Liquid Separator

Contact Now

High Speed Chemical Centrifuge Two stage Pusher Centrifuge for Nitrocotton Dehydration

Technical parameters

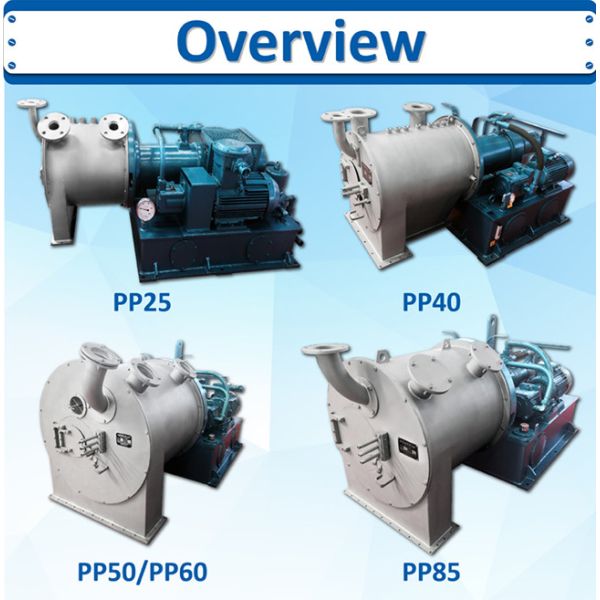

Model	PP-40	PP-50	PP-60
Basket diameter (mm)	290/360	438/500	560/630
Stroke of pusher mechanism (times/min)	40-80	40-80	70-80
Machine speed (rpm)	2500	2000	1360
Operative oil pressure (Mpa)	2.5	2	8
Motor of oil pump (kw)	5.5-7.5	22	13-30
Main motor (kw)	11-15	37-45	55
Output (t/h)	5-7	12	20
Sieve slot	To be decided
Operation temp. (°C)	Below 105	Below 105	Below 105
Overall dimension (mm)	234610901006	366014202078	312717001955
Weight (kg)	2600	4400	4860
